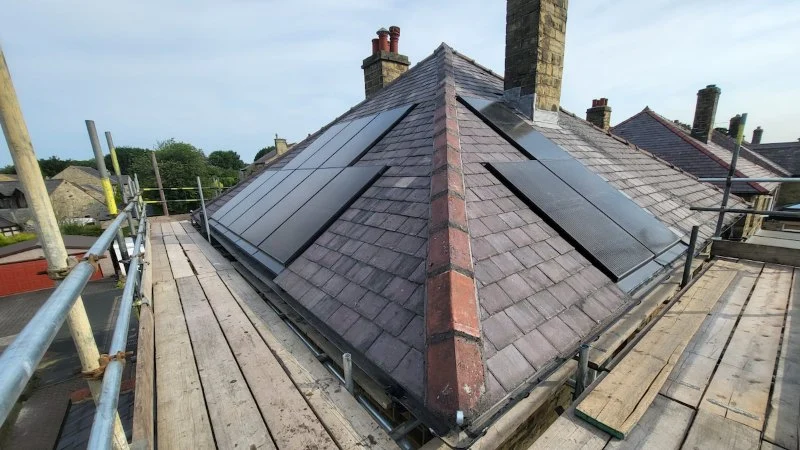

Battery Storage Integration with Roof Solar Systems Explained

• solar battery placement strategy - where batteries should be installed in residential solar systems
• roof load and weight distribution - structural safety considerations for solar + storage setups
• home energy storage integration - how batteries connect with rooftop solar systems
• thermal and safety design - managing heat, ventilation, and fire safety in battery storage
• real installation planning - case-based approach to system layout and optimization

Understanding Battery Storage Integration with Roof Solar Systems

Battery storage integration with roof solar systems has become one of the most important topics in modern residential energy design. As homeowners move toward energy independence, combining solar panels with home energy storage systems allows electricity generated during the day to be used at night or during outages.

However, the technical challenge is not just about connecting panels and batteries. It involves structural engineering, roof load distribution, temperature control, and safe placement strategies that ensure long-term reliability.

Eagle Express Contractor LLC

Queens CountyNew York

53-61 70th St, Flushing, NY 11378, USA

Where to Place Solar Batteries in a Residential Setup

One of the most critical design decisions in solar battery storage systems is location. Batteries are heavy, temperature-sensitive, and require stable environments for optimal performance.

Frank Roofing LLC

WaterburyNaugatuck Valley Planning RegionConnecticut

14 Hickory St, Waterbury, CT 06706, USA

1. Garage Installation Strategy

The most common placement for residential energy storage systems is the garage. This location provides easy access for maintenance, stable temperature conditions compared to outdoor environments, and minimal interference with living spaces.

In a recent California installation, homeowners placed a 13kWh lithium battery system along a reinforced garage wall. This allowed for safe ventilation while maintaining a clean integration with the inverter system.

2. Utility Room Placement

Indoor utility rooms are another common option, especially in larger homes. These rooms often already house HVAC or electrical panels, making system integration more efficient.

3. Exterior Wall Enclosures

In warmer climates, weather-protected exterior enclosures are used. These require careful thermal insulation to prevent overheating during summer months.

Roof Solar Battery Weight Considerations and Structural Impact

While batteries themselves are not typically placed on roofs, their integration with roof solar systems still creates structural considerations. Roof-mounted panels already add load, and combined system design must account for total weight distribution.

Understanding Roof Load Capacity

Most residential roofs are designed to handle a specific live and dead load. Solar panels add a distributed weight across rafters, while mounting hardware increases point-load stress.

Engineers evaluate roof framing before installation to ensure the structure can safely support solar arrays over decades of weather exposure.

Battery Weight vs. Panel Load Distribution

A typical home battery system can weigh between 100 to 300 kilograms depending on capacity. While this weight is usually ground-supported, its proximity to electrical systems and inverter placement still influences design decisions.

How Solar Panels and Batteries Work Together

Solar panel integration with battery systems creates a closed-loop energy ecosystem. During daylight hours, solar panels generate electricity that powers the home and charges the battery. At night, stored energy is used instead of pulling from the grid.

Energy Flow Management

Modern systems use smart inverters that automatically control energy distribution. These devices determine whether energy should be consumed, stored, or exported back to the grid.

Backup Power Functionality

During outages, batteries automatically activate backup mode. This ensures critical systems such as lighting, refrigeration, and medical devices remain powered.

Thermal Management and Safety Design in Battery Systems

Battery storage systems generate heat during charging and discharging cycles. Without proper ventilation and thermal management, performance degradation can occur.

Ventilation Requirements

Proper airflow around battery units is essential. Most manufacturers specify minimum clearance distances to prevent heat buildup.

Fire Safety Considerations

Modern lithium battery systems include internal safety controls, but installation design still requires fire-resistant mounting surfaces and compliance with local electrical codes.

Real Installation Case: Suburban Home Solar + Storage Design

A homeowner in Arizona installed a 9kW rooftop solar system combined with a 20kWh battery storage unit. Initially, they considered placing the battery in an attic space, but engineers advised against it due to excessive heat exposure and structural constraints.

Instead, the battery system was installed in a climate-controlled garage corner with reinforced wall mounting. This decision improved system efficiency and extended battery lifespan by reducing thermal stress.

The rooftop solar array was evenly distributed across south-facing roof sections to balance structural load and maximize sun exposure.

System Planning and Engineering Coordination

Designing a solar + battery system is not a standalone electrical task. It requires coordination between roofing engineers, electricians, and energy system designers.

Load Analysis and Structural Review

Before installation, engineers perform load calculations to ensure the roof structure can safely support solar panels over long-term exposure to wind, rain, and snow loads depending on region.

Electrical Integration Strategy

Battery systems must be properly integrated with the home’s electrical panel. This includes inverter configuration, circuit protection, and grid interconnection compliance.

Long-Term Maintenance and Performance Optimization

Once installed, solar battery systems require periodic maintenance to ensure efficiency. This includes monitoring battery health, cleaning solar panels, and checking inverter performance.

Monitoring Energy Performance

Smart monitoring systems allow homeowners to track energy production and consumption in real time, helping optimize usage patterns.

Battery Lifecycle Management

Most residential batteries last between 10 to 15 years depending on usage cycles. Proper thermal management and controlled charging significantly extend lifespan.

Future Trends in Solar Battery Integration

The future of solar energy systems is moving toward fully integrated smart homes. Batteries will increasingly interact with AI-based energy management systems that predict usage patterns and optimize storage automatically.

Companies and installers such as BeachCo Roofing Hub are helping homeowners design systems that combine roofing expertise with modern solar storage planning, ensuring both structural safety and energy efficiency.

Emerging Design Innovations

New technologies include modular battery units, ultra-light solar panels, and hybrid roofing materials that integrate energy capture directly into building structures.
